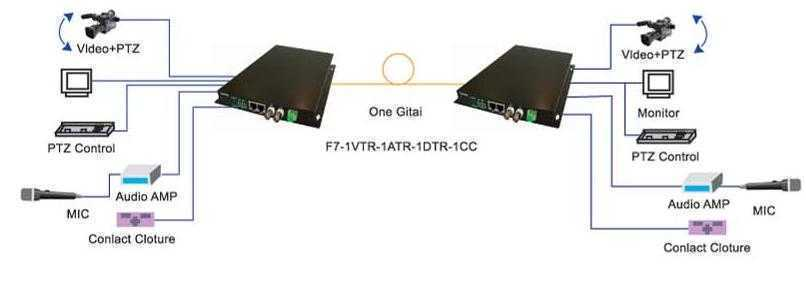

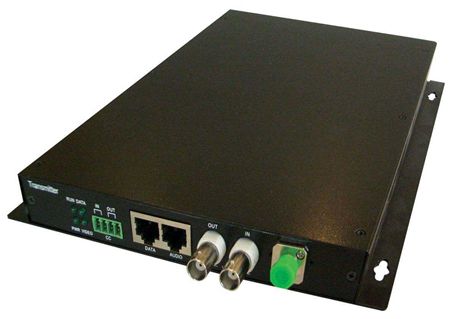

1 Ch Bi-dir Video Optical Transmission
1.Overview
The Fibridge FBVAD1000-Standard video transmitter/Audio/data transceiver and video receiver/Audio/data transceiver series utilizes state-of-the-art 8/10bit digital encoding and decoding for high-quality video transmission that exceeds the requirements of EIA RS-250C for Medium-Haul Video Transmission. These environmentally hardened units provide transmission of one independent video channel, one stereo audio channel, one bi-directional data channel and one Contact Closures channel over one single-mode or multimode optical fiber and are ideal for use in unconditioned roadside or out-of-plant installations. The product is widely used in the field of CCTV, video surveillance, national defense, ITS and etc.
2.Management
Support Console, WEB and SNMP format management
Monitor the module information including: Model, Version, Product description, Slot index, Device base information, Local Video Control, Local and Remote Video transmitting Status, Ethernet Status.
Support 1/2/4/8 channels Video plus E1, Ethernet, Audio, Data, concentrative management.
View the detailed information of power supply
Support real-time alarm and one history alarm message window
3.Specification
3.1Power:
0.5A@12VDC
Indicators:
Power, Run, Video Signal, data
3.2Video:
Channel: 1Bi-dir Channel
Format: PAL/NTSC/SECAM
Video Signal:1Vp-p, 75Ω
Digitization: 8/10bits
Bandwidth: 8MHz
DG: <1%
DP:<1o
SNR:>65dB
Connectors: BNC
3.3Audio
Channel: 1 stereo audio
Line Impedance: unbalanced, 600Ohms
Digitization: 16bit@48k
Bandwidth: 10Hz ~20KHz
SNR:>80dB
Connector: RJ-45
3.4Data:
Channel: 1, Bi-dir
Data Rate: 0~250Kbps
Selectable RS232/RS422/RS485
Connector: RJ-45
3.5Contact Closures:
Input/Output Channels: 1 Bi-dir
Contacts: 220VAC, 1.0amp, 220watts.
Type: Normally open.
Response Time: 0.5 msec maximum
Connector: Terminal plug with screw clamps
3.6Physical Dimensions:
Standalone Box: 255(W) x 176(D) x 25 (H) (mm)
3.7Environment:
Operating: -40oC~+70 oC
Storage: -40oC~+85 oC
Humidity: 0-95% Non-Condensing

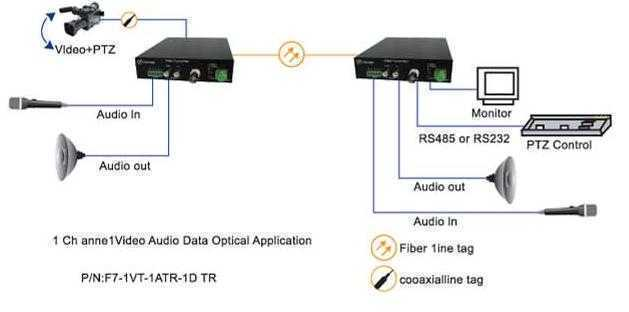

1 Channel Video Audio Data Optical Transceiver
1.Overview
The Fibridge FBVAD1000-Standard video transmitter/Audio/data transceiver and video receiver/Audio/data transceiver series utilizes state-of-the-art 8/10bit digital encoding and decoding for high-quality video transmission that exceeds the requirements of EIA RS-250C for Medium-Haul Video Transmission. These environmentally hardened units provide transmission of one independent video channel, 1 Channel stereo audio channel and 1 Channel bi-directional data channel over one single-mode or multimode optical fiber and are ideal for use in unconditioned roadside or out-of-plant installations. The product is widely used in the field of CCTV, video surveillance, national defense, ITS and etc.
2.Specification
2.1Power:
85-265VAC, 50/60Hz, standalone device
0.2A@12VDC, rack card
Indicators:
Power, Link Status, Video Signal, data
2.2Video:
Channel: 1
Format: PAL/NTSC/SECAM
Video Signal: 1Vp-p, 75Ω
Digitization: 8/10bits
Bandwidth: 8MHz
DG:<1%
DP: <1o
SNR: >65dB
Connectors: BNC
2.3Audio
Channel: 1 Bi-dir audio or stereo audio
Audio Input: unbalanced, 600Ohms
Digitization: 16bit@48k
Bandwidth: 10Hz ~20KHz
SNR: >75dB
Connector: RCA
2.4Data:
Channel: 1
Data Rate: 0~250Kbps
Selectable RS232/RS422/RS485
Connector: Terminal Block with Screw Clamps
2.5Physical Dimensions:
130mmX122mmX36mm, Standalone Box
2.6Environment:
Operating: -40℃~+70℃
Storage: -40℃~+85℃
Humidity: 0-95% Non-Condensing

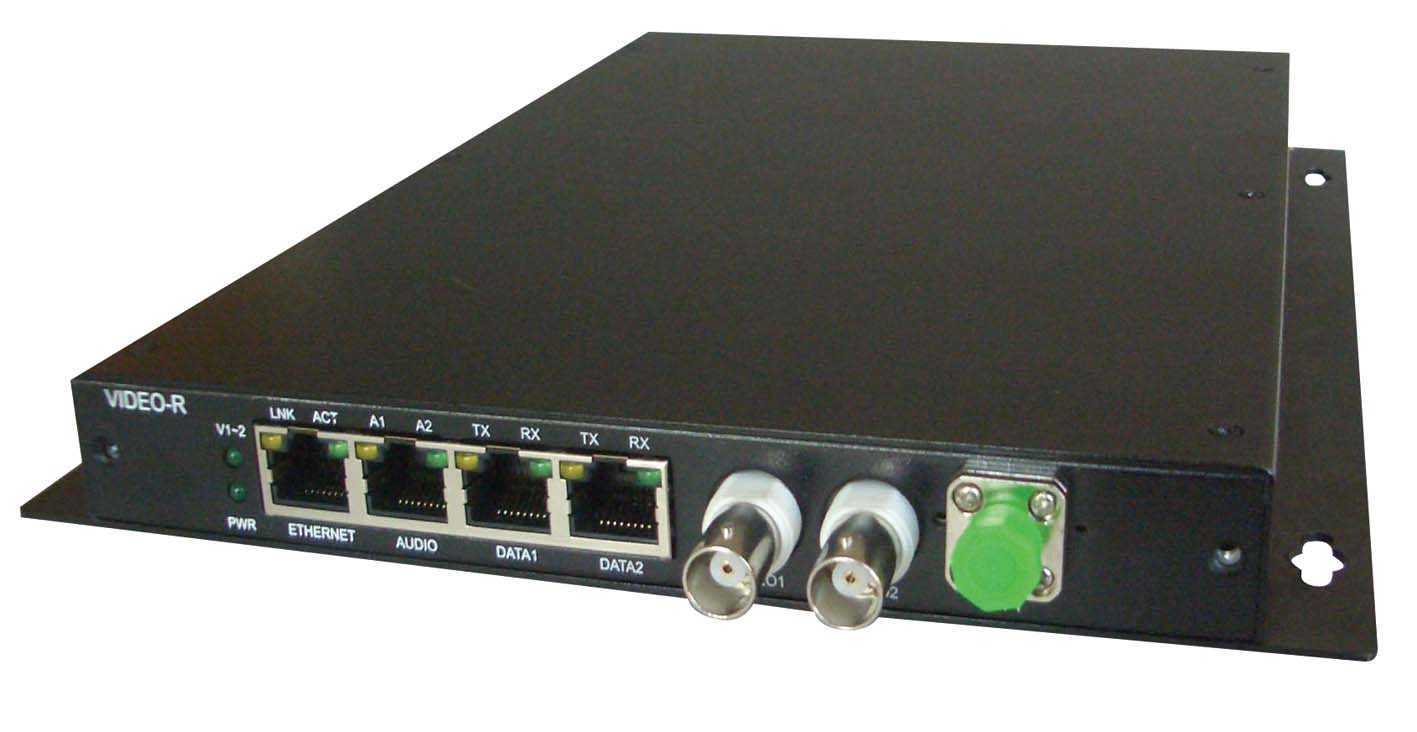

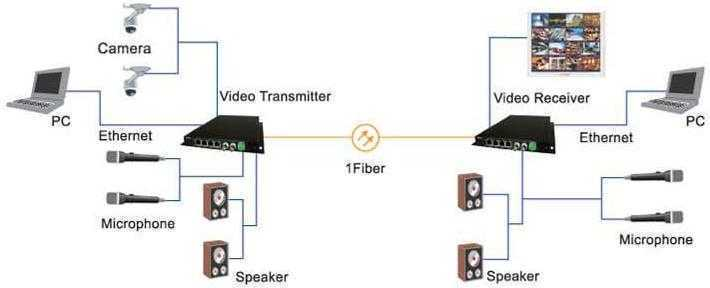

2 Channel Video Audio Data Ethernet Optical
Transmitter & Receiver
1.Overview
The Fibridge FBVAD1000-Standard video transmitter/Audio/data/Ethernet transceiver and video receiver/Audio/data/Ethernet transceiver series utilizes state-of-the-art 8/10bit digital encoding and decoding for high-quality video transmission that exceeds the requirements of EIA RS-250C for Medium-Haul Video Transmission. These environmentally hardened units provide transmission of two independent video channels, two audio channels, 4-6 bi-directional data channels and one 100M Ethernet channel over one single-mode or multimode optical fiber and are ideal for use in unconditioned roadside or out-of-plant installations. The feature of Health Self-diagnosis provides the real-time monitoring on receiving optical power, device temperature and status of power supply, and presents alarms if one of them beyond the threshold. This feature could predict the device performance degradation and help users to identify the optical transmission failure. The product is widely used in the field of CCTV, video surveillance, national defense, ITS and etc.
2.Highlights
Support feature of Health Self-diagnosis, including receiving optical power, device temperature, and power supply status monitoring
Real-time alarms if status beyond threshold
Provide LED indication and management user interface for self-diagnosis
Pre-alarms for the device performance degradation
3.Management
Support Console, WEB and SNMP format management
Monitor the module information including: Model, Version, Product description, Slot index, Device base information, Local Video Control, Local and Remote Video transmitting Status, Ethernet Status.
Support 1/2/4/8 channels Video plus E1, Ethernet, Audio, Data, concentrative management.
View the detailed information of power supply
Support real-time alarm and one history alarm message window
4.Specifications
4.1Power:
200-240VAC,50/60Hz,standalone device
0.5A@12V for 1 slot rack card
Indicators:
Power, Device Work Status
Video Signal, Ethernet Link, Ethernet ACT, Data Transmitting, Data Receiving
4.2Video:
Format: PAL/NTSC/SECAM
Video Signal: 1Vp-p, 75Ω
Digitization: 8/10bits,
Bandwidth:8MHz
DG:<1%
DP :<1o
SNR: >65dB
Connectors:BNC
4.3Audio:
Channel: 1~2, Bi-dir
Audio Input: unbalanced, 600Ohms
Digitization: 16bit@48k
Frequency: 10Hz to 20KHz
SNR:>75dB
Connector: RJ45
4.4Data:
Channel: 1~6, Bi-dir
Data Rate: 0~120Kbps over RS232 channel; 0~250Kbps over RS485/422 channel
Format: RS232/RS422/RS485
Connector: RJ45
4.5Ethernet:
Data Rate: 10/100Mbps auto detect
Standard: IEEE802.3
Connector: RJ45
Auto-negotiation with half/full duplex
4.6Physical Dimensions:
176mmX255mmX25.4mm, stand alone
174mmX225mmX25.4mm, 4U module
483mmX415mmX180mm, 4U chassis
4.7Environment:
Operating: -40oC~+70 oC
Storage: -40oC~+85 oC
Humidity: 0-95% Non-Condensing

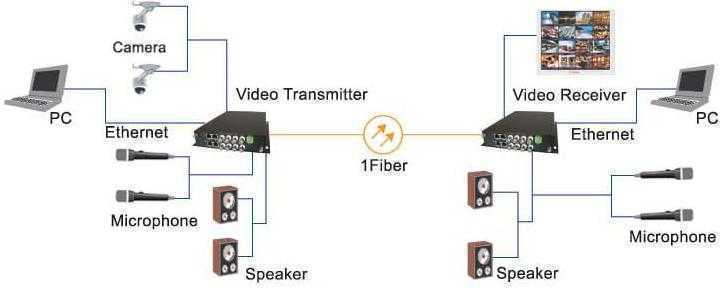

4 Channel Video Audio Data Ethernet Optical Multiplexer
1.Overview
The Fibridge FBVAD1000-Standard video transmitter/Audio/data/Ethernet transceiver and video receiver/Audio/data/Ethernet transceiver series utilizes state-of-the-art 8/10bit digital encoding and decoding for high-quality video transmission that exceeds the requirements of EIA RS-250C for Medium-Haul Video Transmission. These environmentally hardened units provide transmission of 4/8 independent video channels, 4/8 audio channels, 4/8 bi-directional data channels and one 100M Ethernet channel over one single-mode or multimode optical fiber and are ideal for use in unconditioned roadside or out-of-plant installations.The feature of Health Self-diagnosis provides the real-time monitoring on receiving optical power, device temperature and status of power supply, and presents alarms if one of them beyond the threshold. This feature could predict the device performance degradation and help users to identify the optical transmission failure. The product is widely used in the field of CCTV, video surveillance, national defense, ITS and etc.
2.Highlights
Support feature of Health Self-diagnosis, including receiving optical power, device temperature, and power supply status monitoring
Real-time alarms if status beyond threshold
Provide LED indication and management user interface for self-diagnosis
Pre-alarms for the device performance degradation
3.Management
Support Console, WEB and SNMP format management
Monitor the module information including: Model, Version, Product description, Slot index, Device base information, Local Video Control, Local and Remote Video transmitting Status, Ethernet Status.
Support 1/2/4/8 channels Video plus E1, Ethernet, Audio, Data, concentrative management.
View the detailed information of power supply
Support real-time alarm and one history alarm message window
4.Specifications
4.1Power:
100-240VAC 12V 1A External Power Adapter
0.5A@12V for 1 slot rack card
Indicators:
Power, RUN,Ethernet Link, Ethernet ACT, Data Transmitting, Data Receiving
4.2Video:
Channel: 4
Format:PAL/NTSC/SECAM
Video Signal: 1Vp-p, 75Ω
Digitization:8/10bits,
Bandwidth:10MHz
DG:<1%
DP:<1o
SNR: >65dB
Connectors:BNC
4.3Audio:
Channel: 4, Bi-dir
Audio Input: unbalanced, 600Ohms
Digitization: 16bit@48k
Frequency: 10Hz to 20KHz
SNR:>70dB
Connector: RJ45
4.4Data:
Channel: 4, Bi-dir
Data Rate: 0~120Kbps over RS232 channel; 0~250Kbps over RS485/422 channel
Format: RS232/RS422/RS485
Connector: RJ45
4.5Ethernet:
Data Rate: 10/100Mbps auto detect
Standard: IEEE802.3
Connector: RJ45
Auto-negotiation with half/full duplex
4.6Physical Dimensions:
176mmX255mmX25.4mm, stand alone for 1-4CH
176mmX255mmX45mm, stand alone for 5-8CH
145mmX225mmX25.4mm, 4U module for 1-4CH
145mmX225mmX50.8mm, 4U module for 5-8CH
441mmX340mmX180mm, 4U chassis
4.7Environment:
Operating: -40oC~+70 oC
Storage: -40oC~+85 oC
Humidity: 0-95% Non-Condensing
8 Channel Video Audio Data Ethernet Optical Multiplexer
1.Overview
The Fibridge FBVAD1000-Standard video transmitter/Audio/data/Ethernet transceiver and video receiver/Audio/data/Ethernet transceiver series utilizes state-of-the-art 8/10bit digital encoding and decoding for high-quality video transmission that exceeds the requirements of EIA RS-250C for Medium-Haul Video Transmission. These environmentally hardened units provide transmission of 4/8 independent video channels, 4/8 audio channels, 4/8 bi-directional data channels and one 100M Ethernet channel over one single-mode or multimode optical fiber and are ideal for use in unconditioned roadside or out-of-plant installations. The feature of Health Self-diagnosis provides the real-time monitoring on receiving optical power, device temperature and status of power supply, and presents alarms if one of them beyond the threshold. This feature could predict the device performance degradation and help users to identify the optical transmission failure. The product is widely used in the field of CCTV, video surveillance, national defense, ITS and etc.
2.Highlights
Support feature of Health Self-diagnosis, including receiving optical power, device temperature, and power supply status monitoring
Real-time alarms if status beyond threshold
Provide LED indication and management user interface for self-diagnosis
Pre-alarms for the device performance degradation
3.Management
Support Console, WEB and SNMP format management
Monitor the module information including: Model, Version, Product description, Slot index, Device base information, Local Video Control, Local and Remote Video transmitting Status, Ethernet Status.
Support 1/2/4/8 channels Video plus E1, Ethernet, Audio, Data, concentrative management.
View the detailed information of power supply
Support real-time alarm and one history alarm message window
4.Specifications
4.1Power:
100-240VAC 12V 1A External Power Adapter
0.5A@12V for 1 slot rack card
Indicators:
Power, RUN,Ethernet Link, Ethernet ACT, Data Transmitting, Data Receiving
4.2Video:
Channel: 4-8
Format:PAL/NTSC/SECAM
Video Signal: 1Vp-p, 75Ω
Digitization:8/10bits,
Bandwidth:10MHz
DG:<1%
DP:<1o
SNR: >65dB
Connectors:BNC
4.3Audio:
Channel: 4-8, Bi-dir
Audio Input: unbalanced, 600Ohms
Digitization: 16bit@48k
Frequency: 10Hz to 20KHz
SNR:>70dB
Connector: RJ45
4.4Data:
Channel: 4-8, Bi-dir
Data Rate: 0~120Kbps over RS232 channel; 0~250Kbps over RS485/422 channel
Format: RS232/RS422/RS485
Connector: RJ45
4.5Ethernet:
Data Rate: 10/100Mbps auto detect
Standard: IEEE802.3
Connector: RJ45
Auto-negotiation with half/full duplex
4.6Physical Dimensions:
176mmX255mmX25.4mm, stand alone for 1-4CH
176mmX255mmX45mm, stand alone for 5-8CH
145mmX225mmX25.4mm, 4U module for 1-4CH
145mmX225mmX50.8mm, 4U module for 5-8CH
441mmX340mmX180mm, 4U chassis
4.7Environment:
Operating: -40oC~+70 oC
Storage: -40oC~+85 oC
Humidity: 0-95% Non-Condensing

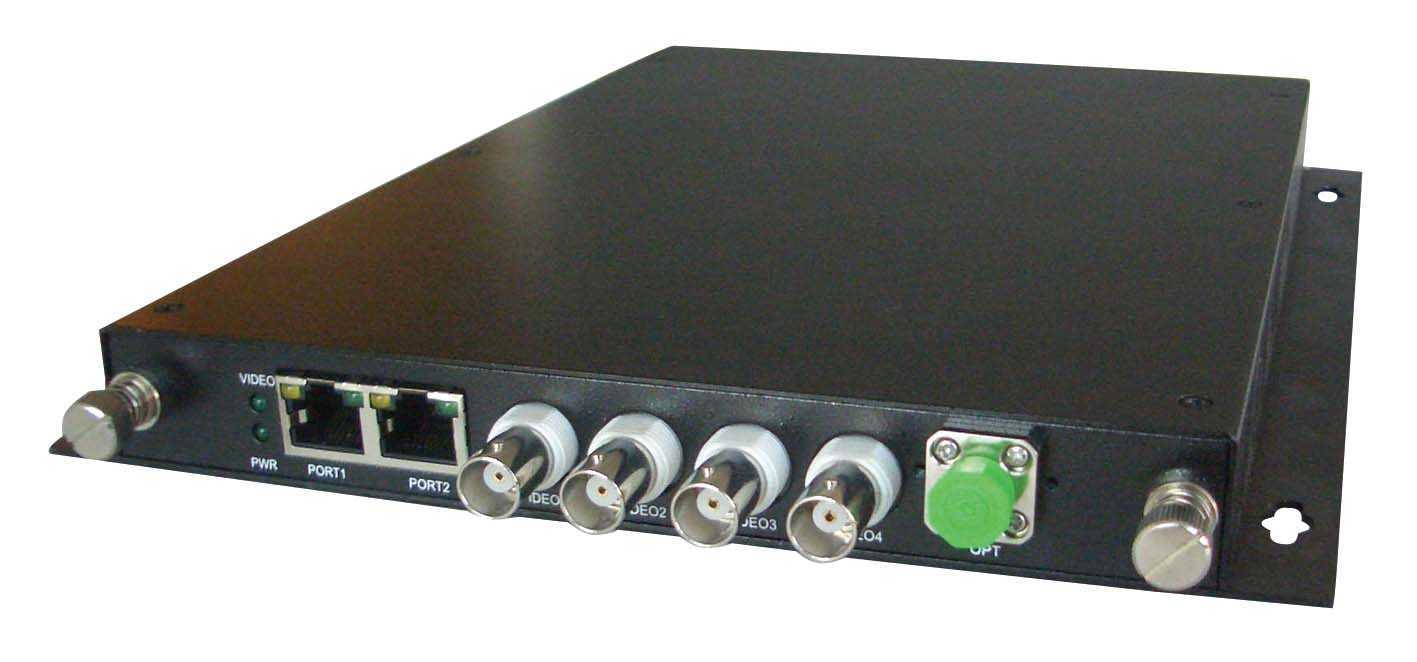

F13-HD-4V-1D:4-Channel HD-SDI Optical Transmission
The F13- HD- 4V- 1D is a high performance, and reliable, 4- channel HD- SDI video optical transceiver, which perform real- time, loss- free and high- quality video transmission and one unidirectional (default)/bi- directional RS485 data overan optical line. Besides, F13- HD- 4V- 1D provides optional audio/contactclosure/RS422/RS232 data transmission, which can be widely used in TV live broadcast, high- definition video conference, high- definition video monitoring, intelligent transportation system and public security system.
The F13- HD- 4V- 1D includes desktop equipment and rack mounting chassis, thedesktop equipment includes a transmitter named F13- HD- 4VT- 1D and a receiver named F13- HD- 4VR- 1D; The rack mounting chassis is used as the centralizedHD- SDI receiver, adopts F13- HD- 416 chassis with 19 inch width, 4U height,and with 16 HD- SDI optical receive card F13- HD- 4VRK- 1D (hot- pluggable) and1 management card, supports CLI command and SNMP_V1&V2 protocol to perform perfect management functions.
Feature
Comply with SMPTE- 292M HD-SDI standard
F13-HD- 4VT- 1D: four HD-SDI input (BNC)
F13-HD- 4VR- 1D / F13- HD- 4VRK- 1D:four HD- SDI output (BNC)
One unidirectional(default) /bi- directional RS485 channel, half duplex, up to115.2Kb/s baud rate
One auxiliary channel, which can be 2- channel bi- directional audio, or 2- channel unidirectional audio, or 4- channel unidirectional audio, or 2- channel contact closure input/output or 1- channel bi- directional contact closure, or 1- channel bi- directional RS422 , or 2- channel bi- directional RS232 channel
F13-HD-2V-1D:2-Channel HD-SDI Optical Transmission
The F13- HD- 2V- 1D is a high performance, and reliable, 2- channel HD- SDI video optical transceiver, which perform real- time, loss- free and high- quality video transmission and one unidirectional (default)/bi- directional RS485 dataover an optical line. Besides, F13- HD- 2V- 1D provides optional audio/contactclosure/RS422/RS232 data transmission, which can be widely used in TV live broadcast, high- definition video conference, high- definition video monitoring,intelligent transportation system and public security system.
The F13- HD- 2V- 1D includes desktop equipment and rack mounting chassis, thedesktop equipment includes a transmitter named F13- HD- 2VT- 1D and a receivernamed F13- HD- 2VR- 1D; The rack mounting chassis is used as the centralized HD- SDI receiver, adopts F13- HD- 416 chassis with 19 inch width, 4U height,and with 16 2- channel HD- SDI optical receive card F13- HD- 2VRK- 1D (hot- pluggable) and 1 management card, supports CLI command and SNMP_V1&V2 protocol to perform perfect management functions.
Feature
Comply with SMPTE-292M HD-SDI standard
F13- HD- 2VT- 1D: two HD-SDI input (BNC)
F13- HD- 2VR- 1D / F13- HD- 2VRK- 1D: two HD-SDIoutput (BNC)
1080P@30,25,24, 1080I@60,50 and 720P@60,50,30,25,24
With integrated cable equalizer
Embedded ESD and surge protection circuit toprevent damage from static and thunder
With NOP (No optical signal) alarm indications,output status indicator and input lock indicator
With APC circuit to perform stable optical power
F13-HD-8V-1D:8-Channel HD-SDI Optical Transmission
The F13- HD- 8V- 1D is a high performance, and reliable, 8- channel HD- SDI video optical transceiver, which perform real- time, loss- free and high- quality video transmission and one unidirectional (default)/bi- directional RS485 data overan optical line. Besides, F13- HD- 8V- 1D provides optional audio/contact closure/RS422/RS232 data transmission, which can be widely used in TV live broadcast, high- definition video conference, high- definition videomonitoring, intelligent transportation system and public security system.
The F13- HD- 8V- 1D includes desktop equipment and rack mounting chassis, thedesktop equipment includes a transmitter named F13- HD- 8VT- 1D and a receiver named F13- HD- 8VR- 1D; The rack mounting chassis is used as the centralized HD- SDI receiver, adopts F13- HD- 416 chassis with 19 inch width, 4U height,and with 16 HD- SDI optical receive card F13- HD- 8VRK- 1D (hot- pluggable) and1 management card, supports CLI command and SNMP_V1&V2 protocol to perform perfect management functions.
Feature
Comply with SMPTE-292M HD-SDI standard
F13- HD- 8VT- 1D: 8 HD-SDI input (BNC)
F13- HD- 8VR- 1D / F13- HD- 8VRK- 1D: 8 HD-SDIoutput (BNC)
1080P@30,25,24, 1080I@60,50 and 720P@60,50,30,25,24
With integrated cable equalizer
Embedded ESD and surge protection circuit toprevent damage from static and thunder
With NOP (No optical signal) alarm indications,output status indicator and input lock indicator
